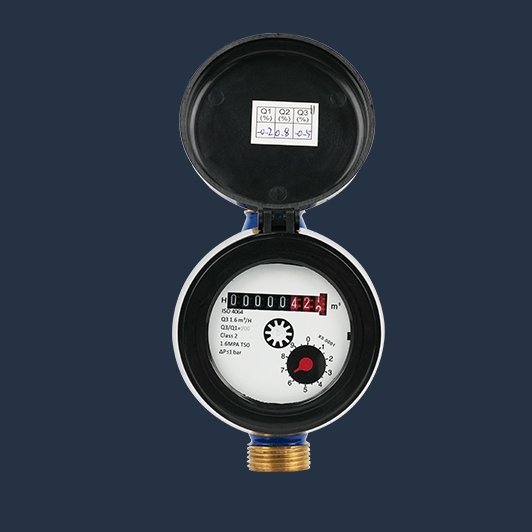

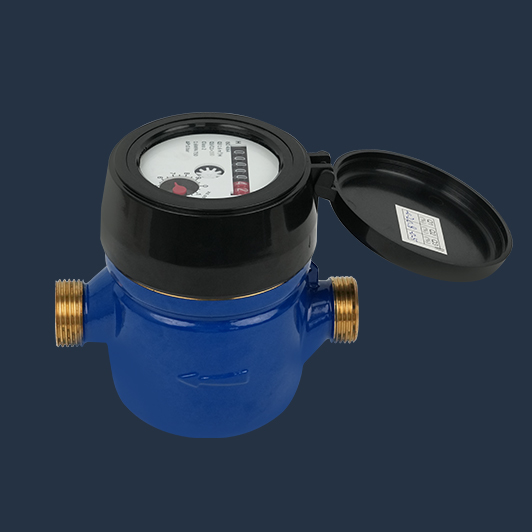

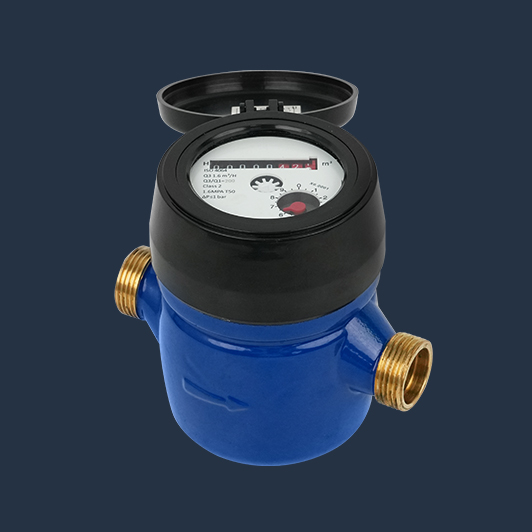

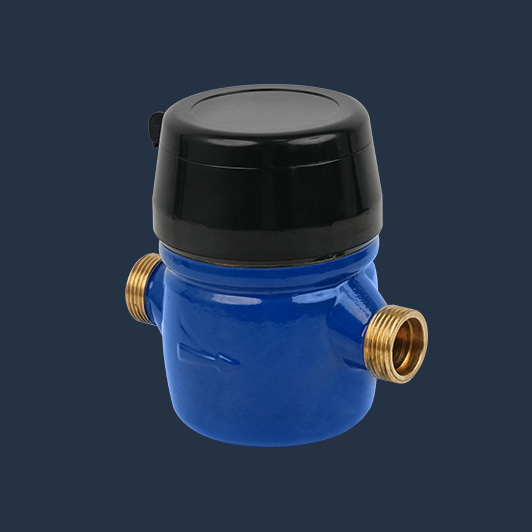

R200 Volumetric Water Meter

R200 Volumetric Water Meter,High-accuracy, low-flow detection water meter for precise residential and commercial metering.

Introduce

The R200 volumetric water meter is engineered to provide exceptionally accurate measurements, especially at very low flow rates, making it ideal for residential and light commercial applications. Its volumetric rotary piston mechanism ensures long-term stability, reliability, and resistance to wear, even in areas with poor water quality.

Function and Supply conditions

  • 1.Size:DN15
  • 2.Wide range ratio, R=200
  • 3.Cold Water temperature : ≤40°C
  • 4.Standards: ISO4046 Class C
  • 5.Working pressure : ≤1.6Mpa
  • 6.Body: Brass

Key Features

  • R200 Accuracy Class: Ensures precision in billing and measurement, even with micro-leakage or minimal usage.
  • Low Starting Flow: Captures every drop, ideal for detecting small leaks and reducing water loss.
  • Compact & Robust Design: Suitable for horizontal and vertical installation in tight spaces.
  • Long Service Life: Made with high-quality polymers and brass, ensuring durability.
  • Customizable OEM Service

Size of  R200 Volumetric Water Meter

DN(mm) Length(mm) Width(mm) Height(mm) Thread D Weight Kg
15 115 74 115 G3/4B 0.791
Flow Range Qm=Minimum flow,Qt=Transitional flow,Qp=Permanent flow,Qs=Overload flow
DN(mm) Qm(m³/h) Qt(m³/h) Qp(m³/h)  Qm(m³/h)
15 0.0125 0.04 2.5 3.12

Applications

1.Urban residential water supply

2.Smart housing water management

3.Utility metering for apartments or small commercial users

4.Projects requiring high metering precision

Why Choose Our R200 Volumetric Water Meter?

At Shengda Water Meter Co., Ltd., we are committed to delivering high-quality, reliable water meters tailored to global utility needs. Our R200 meters have been widely adopted in Europe, Africa, and Latin America, with proven field performance and strong OEM support.
