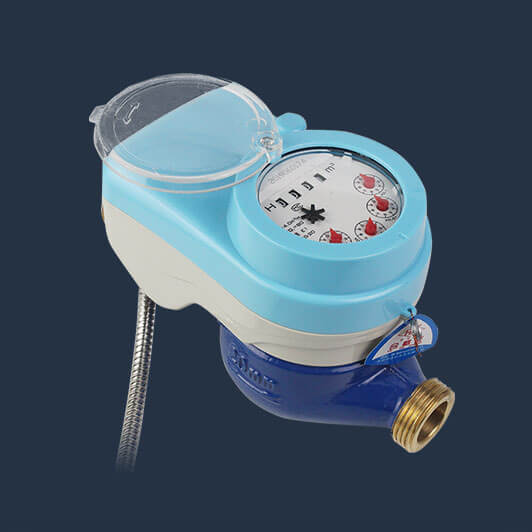

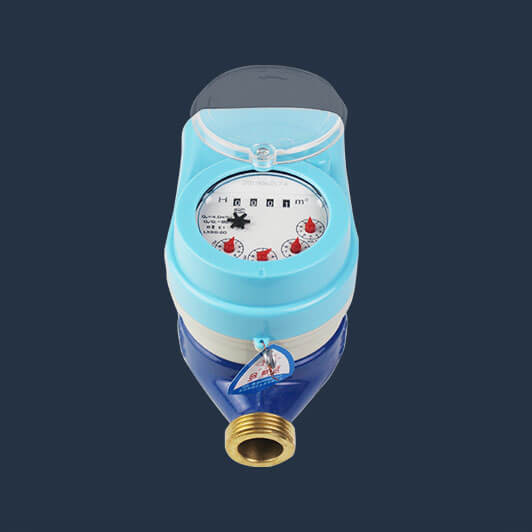

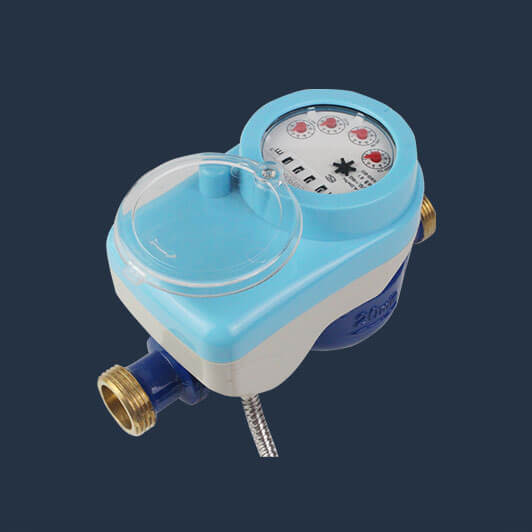

Wired Remote Valve Control Water Meter
The wired remote water meter uses cable to transmit the metering data of the water meter to the electronic data collector, and then the data collector transmits it to the concentrator, which uploads it to the terminal management system through the network.
Wired remote transmission valve controlled water meter adds valve control function on the basis of wired remote transmission water meter.We provide wired remote water meter computer management system for customers for free. The system functions include water price setting, rate setting, quick query and recharge, reset balance, change password, query history, overdraft, print receipt, etc
Supply Conditions:
- Supply Size:DN15~DN200
- Body Material: brass/iron
- R: 80/100/160(optional)
- Max.work pressure: 1.0MPa
- Water temperature: T30,T90
- Communication: M-BUS/RS485
- Communication transmission rate:1200/2400/4800/9600bps
- Communication protocol:CJ/T188,DL/T645-1997,MODBUS
- Software payment: Supply for free
Features
1. Step water price can be set remotely through the system.
2. The computer can control the valve remotely.
3.Open and close the valve regularly to prevent scaling.
4.when the battery under voltage, abnormal measurement, etc., can be remote alarm.
5.Power supply is only required for reading.
Communication modes
There are M-BUS and RS-485 communication modes for wired remote water meter.
RS-485 water meter
- Work voltage: 6-14V
- Standby current: ≤1.1mA
- Work current: ≤5mA
- Transmission distance: 1200M
- Communication transmission rate: 1200bps-9600bps
- Communication protocol
- Protocol: DL/T645 CJ/T188 MODBUS
M-bus water meter
- Work voltage: 24-42V
- Standby current: ≤1.5mA, work current: ≤20mA
- Transmission distance: 1200M
- Communication transmission rate: 1200bps-9600bps
- Communication protocol
- Protocol: DL/T645 CJ/T188 MODBUS
