Multi Jet Dry Dial Water Meter
Specifications：
1.Sizes:DN15-DN300
2.Body materials：Brass/stainless steel/cast iron/Nylon
3.Water Temperature:T30,T90
4. Working pressure: 1.0 Mpa

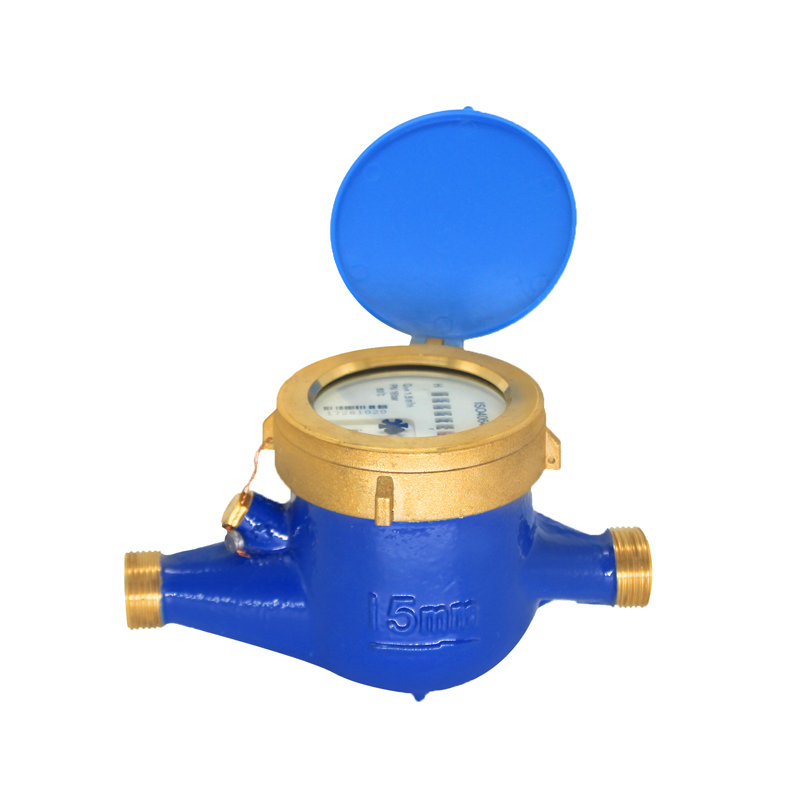

LXS Series Brass Residential Multi-jet Water Meter
- Proven multi-jet flow meter design.
- Vacuum sealed register, frost resistant.
- Easy to read dial with large digits.
- Magnetic drive eliminates leak point.
- Low-flow indicator.
- Remote transmission device can be added upon request.
- Reed Switch, Hall and Weagand can be supplied according to requirement Pulse output switch available.
Optional Features
- Dry type/wet type
- Horizontal use/Vertical use
- Qp/Qm: R=80/100/160
- Provide pulse output,rs485 modbus,wired remote,pulse splitter,pulse read display，Lora,NB-Iot Remote transmission device can be choose Non return valve.
Dimension
| DN(mm) | Length | Width | Height | Thread | Weight |
| mm | D | Kg | |||
| 15 | 165 | 100 | 104 | G3/4B | 1.5 |
| 20 | 195 | 100 | 106 | G1B | 1.7 |
| 25 | 225 | 104 | 112 | G13/4B | 2.6 |
| 32 | 230 | 104 | 120 | G13/2B | 2.8 |
| 40 | 245 | 125 | 125 | G2B | 4.8 |
