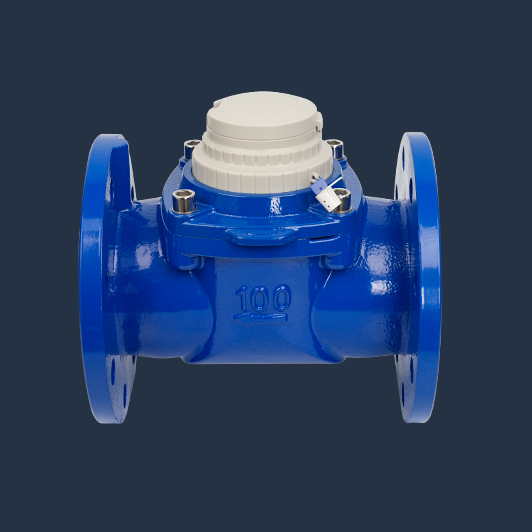

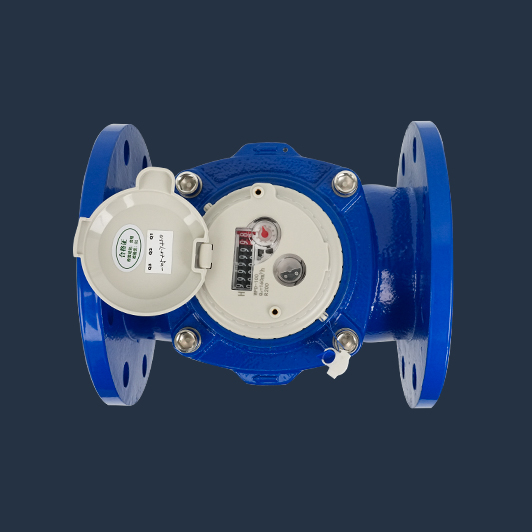

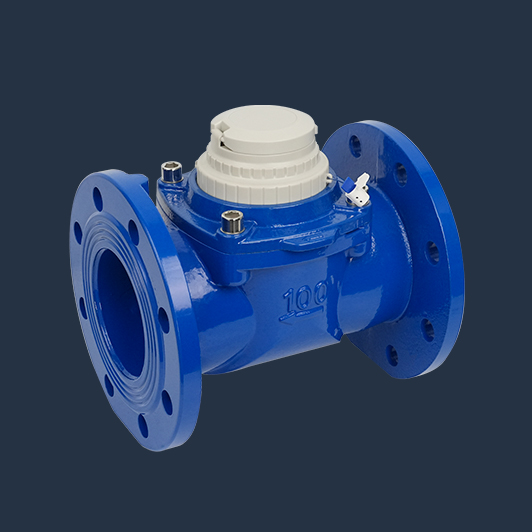

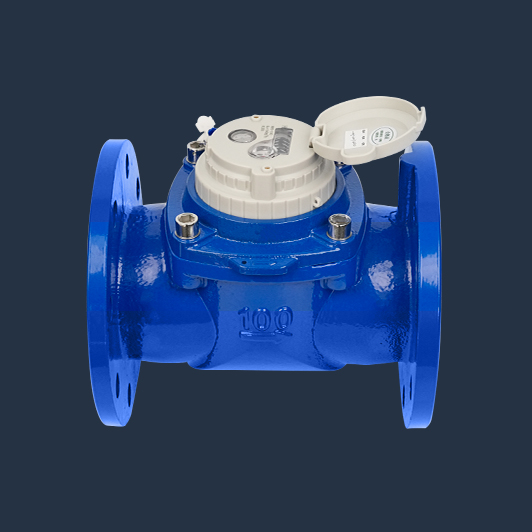

WPD Woltman Water Meter
The WPD Water Meter is a Woltman type bulk water meter specially designed for accurate measurement of large water flow rates. It is widely used in municipal water supply networks, industrial water systems, commercial complexes, and main pipeline flow monitoring.
Working Principle
When water flows through the meter along the pipeline axis, it drives the internal Woltman turbine (impeller) to rotate.The rotational speed of the turbine is directly proportional to the volume of water passing through the meter. The mechanical transmission system transfers this movement to the register, which accurately records the total water consumption.
Deliver condition
- Meter Type：Woltman Type (WPD)
- Nominal Diameter:DN50-DN300
- R:R160/R200
- Installation:Horizontal installation
- Pressure Rating:PN16/PN25 (optional)
- Water Temperature:T50/T90
- Output Options:Pulse/M-Bus/RS485
Key Features
Designed for Large Flow Measurement
Suitable for bulk water metering in main pipelines and industrial applications.
Low Pressure Loss
Axial flow structure minimizes resistance, reducing energy loss in the pipeline.
Stable Accuracy & Wide Measuring Range
Reliable performance over long-term operation with consistent measurement results.
Robust & Durable Construction
Corrosion-resistant materials ensure long service life in harsh environments.
Optional Remote Reading Interfaces
Available with pulse output, M-Bus, RS485
| Type | SIZE | Q4(m³/h) | Q3(m³/h) | Q2(m³/h) | Q1(m³/h) | Min. Reading m³ | Max. Reading m³ |
| WPD-50 | 2″ | 50 | 40 | 0.32 | 0.2 | 0.0005 | 999999 |
| WPD-65 | 2½″ | 78.75 | 63 | 0.504 | 0.315 | 0.0005 | 999999 |
| WPD-80 | 3″ | 125 | 100 | 0.8 | 0.5 | 0.0005 | 999999 |
| WPD-100 | 4″ | 200 | 160 | 1.28 | 0.8 | 0.0005 | 999999 |
| WPD-150 | 6″ | 312.5 | 250 | 2 | 1.25 | 0.005 | 9999999 |
| WPD-200 | 8″ | 500 | 400 | 3.2 | 2 | 0.005 | 9999999 |
