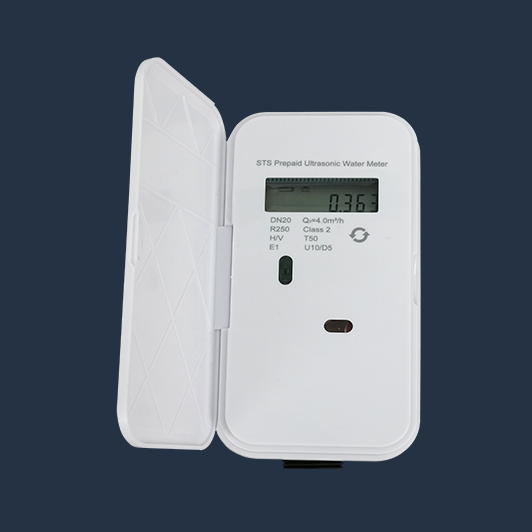

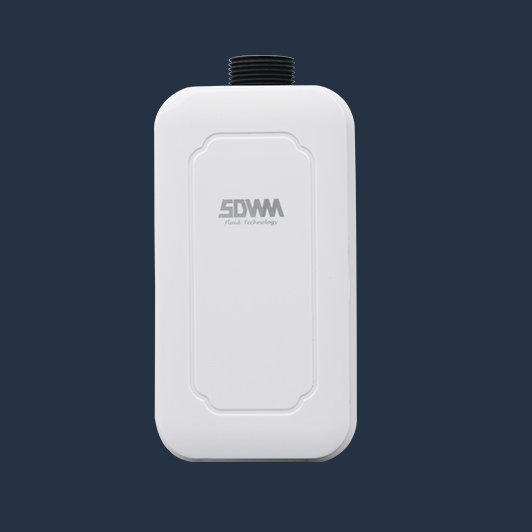

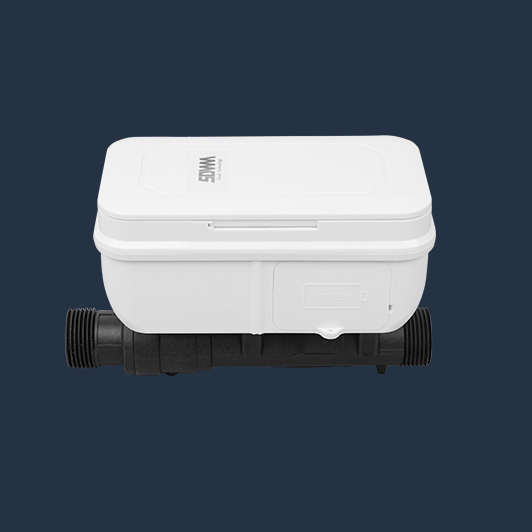

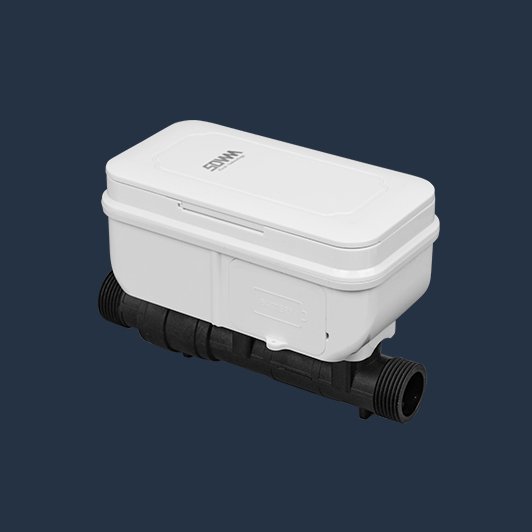

STS Ultrasonic Water Meter
Our STS ultrasonic water meter adopts advanced LoRa communication technology,it supports prepaid billing, remote monitoring, and reliable performance in harsh environments.
Supply conditions
- 1.Size:DN15~DN25
- 2.Wide range ratio, R=250,R=400
- 3.Temperature:-20~55℃
- 4.Installation:Horizontal/Vertical
- 5.Protection:IP68
- 6.Communication:LoRa
- 7.Battery Life:10 years
- 8.Pressure:1.6MPa
- 9.Low battery capacity alarm,Valve failure alarm.
- 10.Wireless remote technology:4G Cat1/LoRaWAN/NB-IOT
- 11.Infrared configuration:Infrared set/read meter parameters.
Function
- Remote meter reading (consumption, balance, status)
- STS encryption TOKEN recharge (20-digit code)
- Prepaid & postpaid mode switch
- Valve control (open/close automatically)
- Alarm system:Over-range alarm,Low battery alarm,Valve failure alarm.
|
Diameter (mm) |
R |
Q4 (m³/h) |
Q3 (m³/h) |
Q2 (m³/h) |
Q1 (m³/h) |
Min. Reading m³ |
Max. Reading m³ |
|
DN15 |
250 |
3.125 |
2.5 |
0.05 |
0.03125 |
0.0001 |
99999 |
|
DN20 |
250 |
5 |
4 |
0.08 |
0.05 |
0.0001 |
99999 |
|
DN25 |
250 |
7.875 |
6.3 |
0.126 |
0.07875 |
0.0001 |
99999 |
