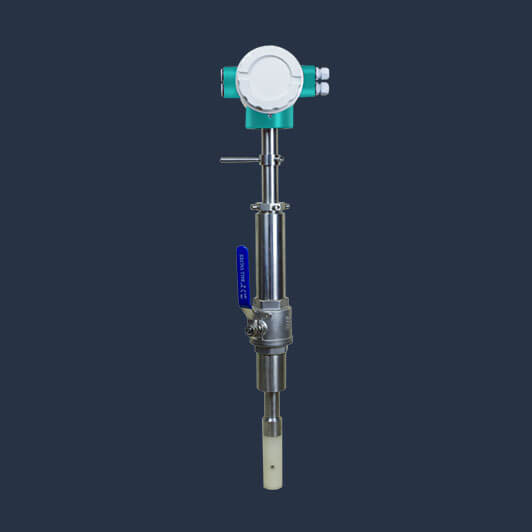

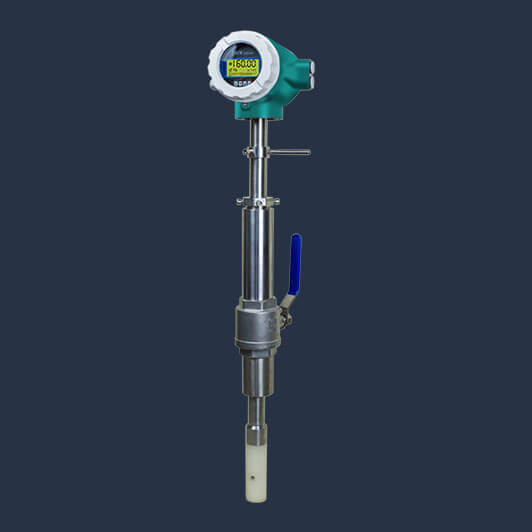

Plug in Electromagnetic Flowmeter
The plug-in electromagnetic flow meter to measure the volume flow of various conductive liquids in the pipeline. It is widely used in chemical industry, chemical fiber, metallurgy, chemical fertilizer, papermaking, water supply and drainage, sewage treatment and other industrial departments and agricultural irrigation water measurement.
Product advantages
- Compared with the tubular electromagnetic flowmeter, the advantages of plug-in flowmeter are as follows
- 1. No need to cut off the water and cut off the pipeline, and install it directly on the old pipeline;
- 2. Easy to disassemble during maintenance;
- 3. The instrument has simple structure and high reliability;
- 4. It is especially suitable for large diameter pipeline with high cost performance ratio;
- 5. The accuracy is lower than that of flange type, which is mostly used for process control rather than measurement;
Parameters
| Model | One body | Split body |
| Pipe size | DN100~DN3000 | |
| Accuracy class | ±1.5% | |
| Flow Range | 0.5m/s~15m/s | |
| Electrode material | SS316L,Hastelloy B,Hastelloy C,ect | |
| Measuring tube material | Polyurethane,ABS | |
| Flange material | Stainless steel | |
| Working pressure | 1.6MPa | |
| Medium temperature (℃) | -20～＋80℃ | -20～＋120℃ |
| Conductivity of medium | more than 5μS/cm | |
| Output signal | 0mA~10mA,4mA~20mA,0Hz~5KHz | |
| Communication mode | RS485(RS232,MODBUS,HART,PROFIBUS-DP) | |
| Protection grade | IP65/IP68 （optional） | |
| Sensing element cable | Null | ＜30m (any more should contact us ) |
| Alarm | Upper limit Alarm/lower limit Alarm | |
| Alarm | Empty pipe Alarm | |
