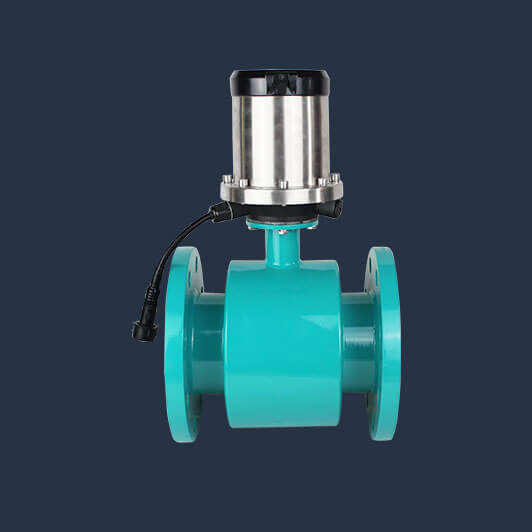

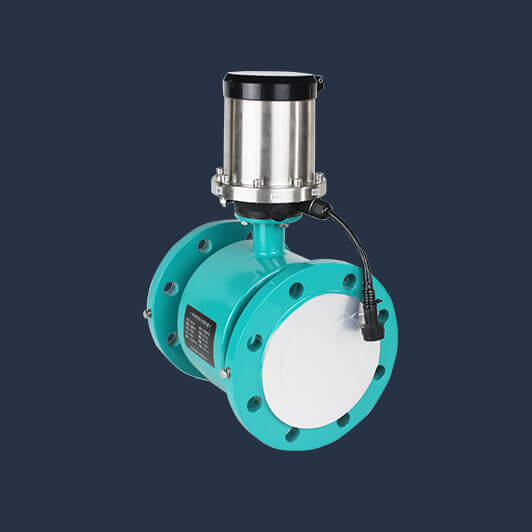

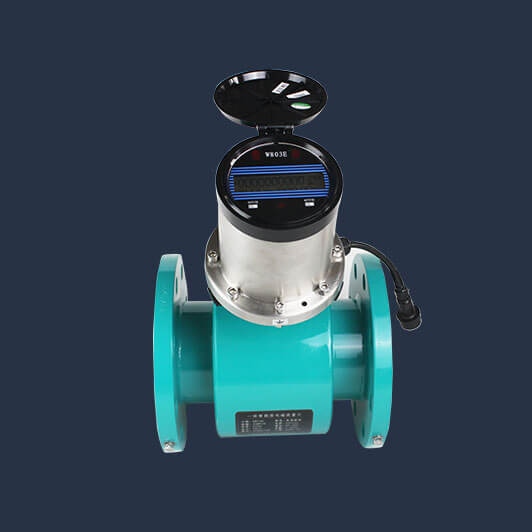

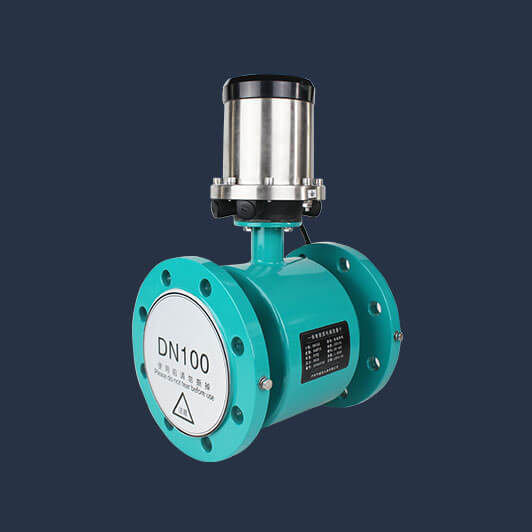

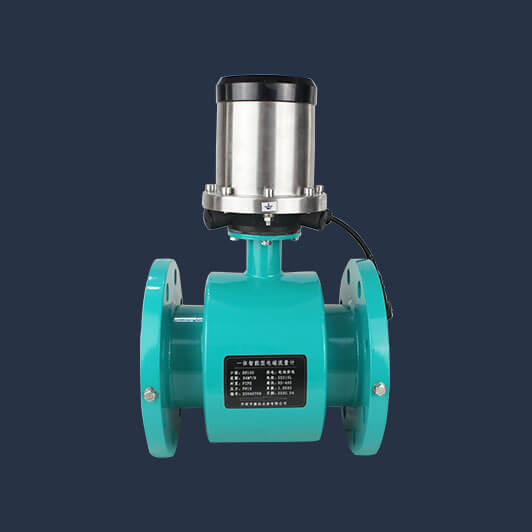

Lithium Battery Powered Electromagnetic Flow Meter
Lithium Battery Powered electromagnetic flowmeter is specially designed for water resources and water industry, and is widely used in on-site places without power supply, such as urban water supply, sewage treatment, water conservancy engineering, water administration, water resources and other industries.
Function
-
- 1. Wireless communication mode support GPRS/4G/NB-IOT/LORA.（Optional）
- 2.The flow and pressure signals can be measured at the same time.（Optional）
- 3.Support web, mobile app query data, remote configuration parameters, firmware update, etc.
- 4. All digital signal processing, stable measurement, high measurement accuracy and strong anti-interference ability.
- 5.Automatic two-way flow measurement, on-site instantaneous flow, positive and negative cumulative total display.
- 6.Fluid air traffic control detection and alarm, excitation current detection and alarm, battery capacity detection and alarm.
- 7.GSM data wireless remote transmission.
- 8.Display mode：LCD large screen, display instantaneous flow, flow rate, positive / negative cumulative total and alarm.
Types
Parameters
| Size: | DN15-DN800 |
| Accuracy | ± 0.5%, ± 0.2% |
| Measuring range | 0.05m/S~15m/S |
| Measuring medium (conductivity) | ＞20μs/cm |
| Medium temperature | -10℃～160℃ |
| Ambient temperature | -10℃～60℃ |
| Ambient humidity | ≤ 95% |
| Protection grade | IP65, IP67, IP68 |
| Power supply mode | 3.6V built-in lithium battery, continuous work 5-10years |
| Output signal | Pulse output 0.0001-10m3/p |
| Communication mode | RS-485,GSM/GPRS |
| Electrode | 316L, HASTELLOY B,HASTELLOY C,Titanium,Tantalum, Platinum/iridium Alloy,etc |
| Liner | Rubber, PTFE, PFA, F46, Polyurethane,etc |
