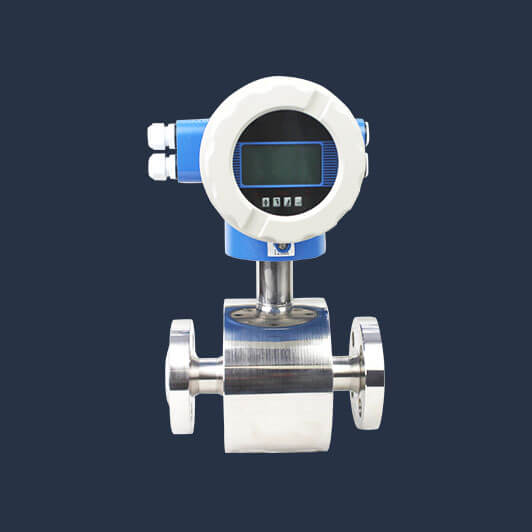

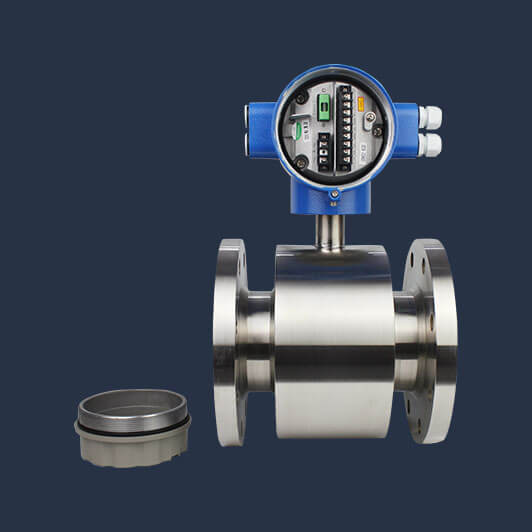

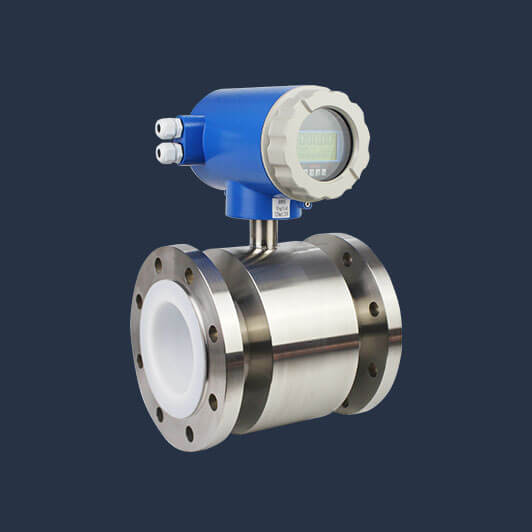

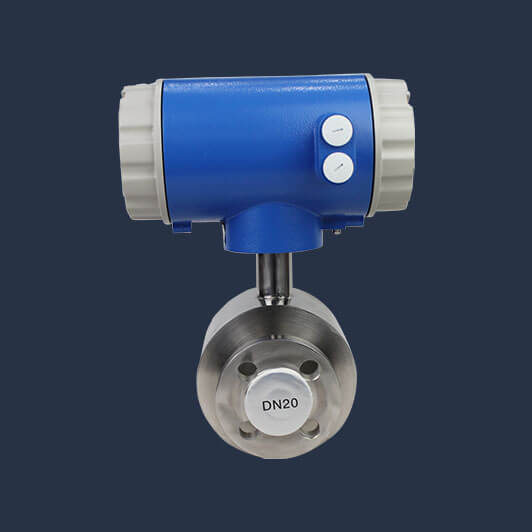

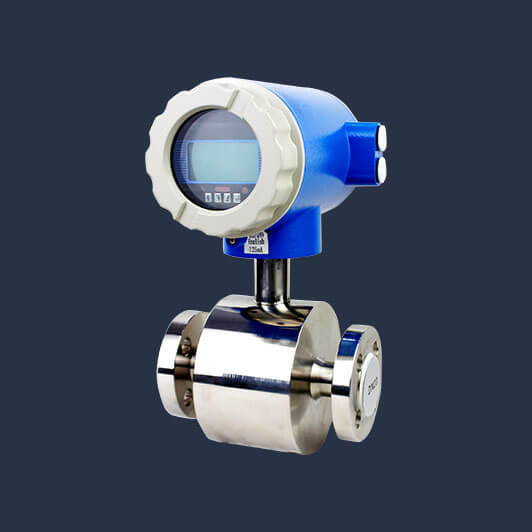

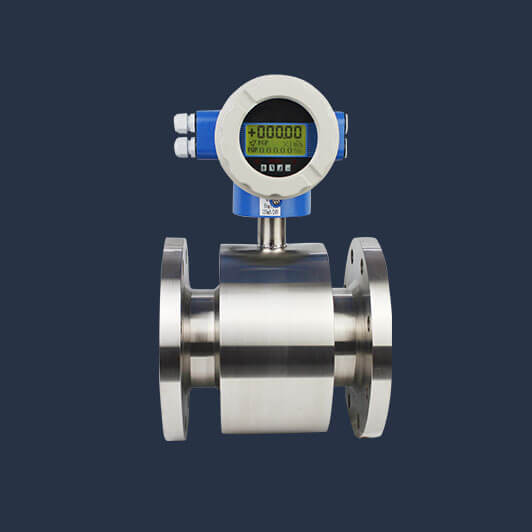

Compact Type Stainless Steel Electromagnetic Flow Meter
Intelligent stainless steel electromagnetic flow meter is a kind of high performance, high reliability flow meter, which is widely used in petroleum, chemical industry, food, electricity, steel, paper making, metallurgy, water supply and drainage, petrochemical, medicine industry,cement grout, paper pulp etc.
Features
1. No movable parts in the electromagnetic flow meter, no loss pressure , simple structure, woke reliable;
2.The measurement accuracy is not affected by the change of the measured medium’s pressure, density,
temperature, viscosity and other physical parameter;
3. Moisture proof and waterproof performance is good. Suit for setting up and being used underground or wet environments;
4. Compare with other flow meter, its advantage : big measurement range , low demand in straight pipe, high accuracy;
5. Low power consumption, one set flow meter power consumption less than 20W.
6.It can detect pressure at the same time.
Main technical indicators
- Nominal diameter: DN15~DN500
- Accuracy: ±0.2%/±0.3%/±0.5% （optional）
- Measurement range: 0.01m/s~15m/s
- Conductivity of medium: more than 5μS/cm
- Nominal pressure: 0.6MPa/1.0MPa/4.0MPa
- Protection grade: IP65/IP67/IP68 （optional）
- Electrode material: Stainless steel 316L, Hastelloy B, Hastelloy C, Titanium alloy, Tantalum alloy, Platinum-iridium alloy,
Stainless steel-coated tungsten carbide and other special material. - Lining material: Neoprene, Polyurethane rubber, natural rubber, nitrile rubber, Teflon(PFA), Polytetrafluoroethylene (PTFE),
fluorinated ethylene propylene (FEP OR F46), ceramics. - Connection: Flange connection [GB/DIN/ANSI/JIS standards]
- Measured Material Temp: -20℃~180℃
- Ambient temperature: -10℃~50℃
- Power supply: AC220V/DC24V/DC3.6V
- Signal output: MODBUS RTU,Analog 4mA-20mA, 0Hz~ 5 KHz frequency, two alarm outputs: high limit alarm and low limit alarm
- Communication: RS485, RS232, MODBUS RTU, HART, PROFIBUS-DP (OPTIONAL)
Related types
Parameters
| Size | Length（mm） | Flange diameter (mm) | Flange center distance（mm） | Flange thickness（mm） | Height（mm） | Bolt | |||
| Separating type | Integrated type | Hole DIA | QTY | Bolt Size | |||||
| DN15 | 200 | 95 | 65 | 14 | 190 | 265 | 14 | 4 | M12 |
| DN20 | 200 | 105 | 75 | 16 | 200 | 275 | 14 | 4 | M12 |
| DN25 | 200 | 115 | 85 | 16 | 210 | 285 | 14 | 4 | M12 |
| DN32 | 200 | 140 | 100 | 18 | 220 | 310 | 18 | 4 | M16 |
| DN40 | 200 | 150 | 110 | 18 | 230 | 320 | 18 | 4 | M16 |
| DN50 | 200 | 165 | 125 | 20 | 245 | 335 | 18 | 4 | M16 |
| DN65 | 200 | 185 | 145 | 20 | 265 | 355 | 18 | 8 | M16 |
| DN80 | 200 | 200 | 160 | 20 | 280 | 370 | 18 | 8 | M16 |
| DN100 | 250 | 220 | 180 | 22 | 300 | 390 | 18 | 8 | M16 |
| DN125 | 250 | 250 | 210 | 22 | 330 | 420 | 18 | 8 | M16 |
| DN150 | 300 | 285 | 240 | 24 | 360 | 450 | 22 | 8 | M20 |
| DN200 | 350 | 340 | 295 | 24 | 420 | 505 | 22 | 8 | M20 |
| DN250 | 400 | 395 | 350 | 26 | 480 | 560 | 22 | 12 | M20 |
| DN300 | 500 | 445 | 400 | 26 | 530 | 610 | 22 | 12 | M20 |
