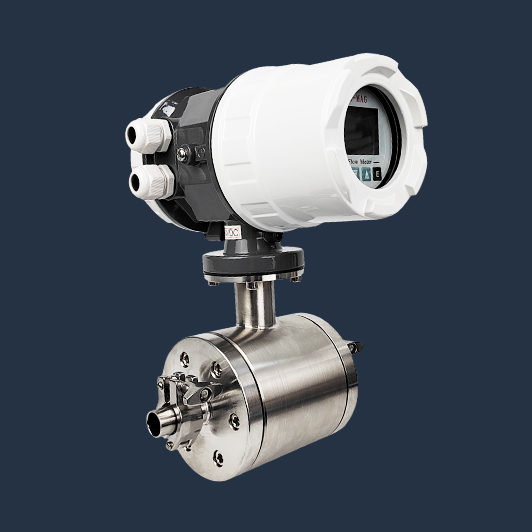

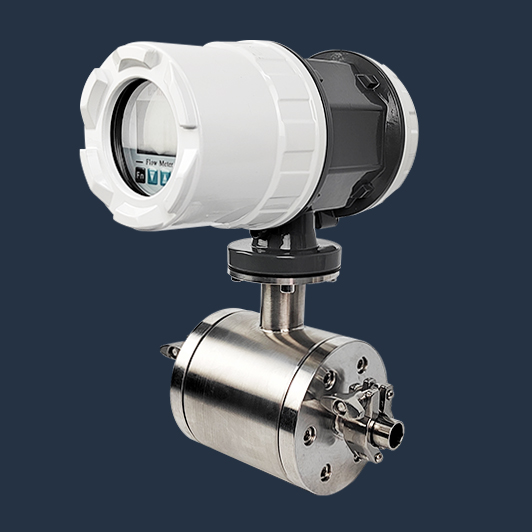

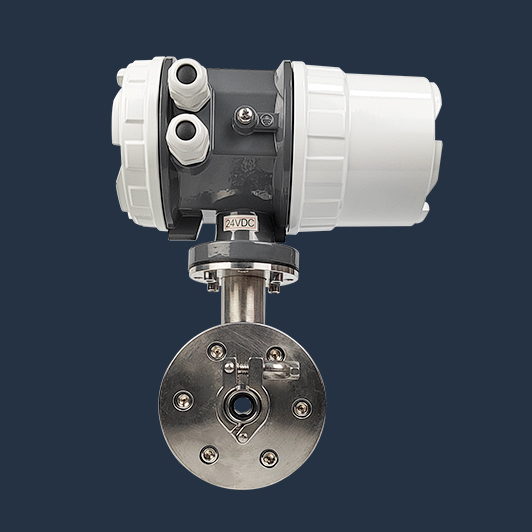

Sanitary Electromagnetic Flowmeter
sanitary electromagnetic flowmeter is applicable for all food grade conductive liquids measure, such as drinking water, food processing, pharmaceutical industry，ect
Hygienic Applications
The sanitary electromagnetic flowmeter adopts the sanitary lining material, which meets the sanitary requirements of the food industry. At the same time, it adopts the stainless steel shell and stainless steel clamp connection, which is convenient for disassembly and cleaning, and it is difficult to be polluted in use. It is widely used in mineral water, soy sauce, jam, beer, juice, milk and other food production and manufacturing fields.
Features
- Sanitary Fittings
- Tri-clamp connection easily clean and sanitize.
- Mag flow sensor with all stainless steel material (SS316 or 316L option)
- Economical cost hygienic flow meter
Technical Specification
| Type | Electromagnetic flowmeter |
| Measuring Range | 4 ~ 1696 (m3 / h) |
| Accuracy Class | ± 0.5 % of reading, optional 0.3% |
| Nominal Diameter | DN15-200(mm)(1/2 inch to 8 inch) |
| Process Connections | SS316/SS316L |
| Working pressure | 0.6 ~ 1.6 (MPa) |
| Working temperature | -20 ~ + 60 (℃) |
| Medium Temperature | ≤120 |
| Output | 4-20mA, Relay, Frequency，Pulse, RS 485, HART (optional) |
| Lining Material | PTFE |
| Electrodes | SS316/SS316L |
| Electrical conductivity | Water 20μS/cm other medium 5μS/cm |
| Protection | IP67 |
