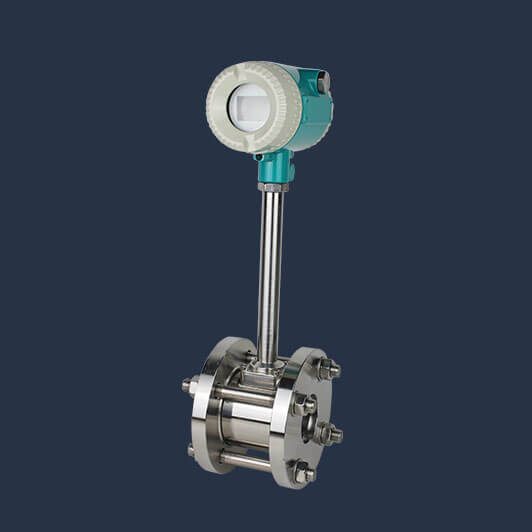

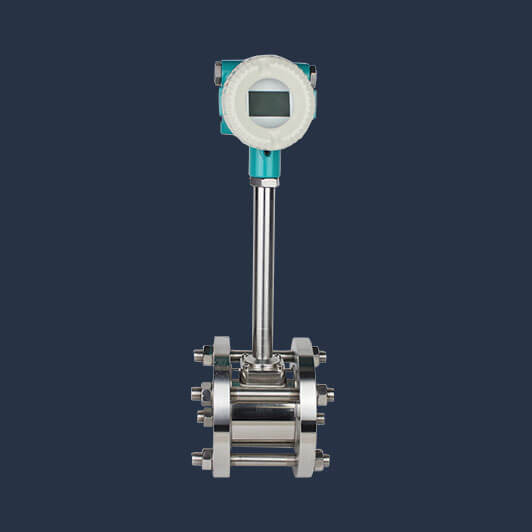

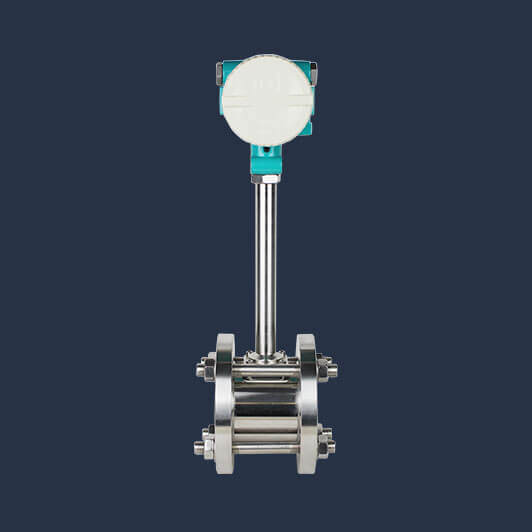

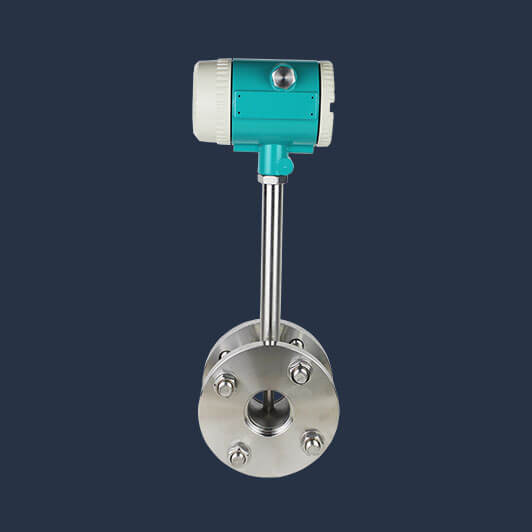

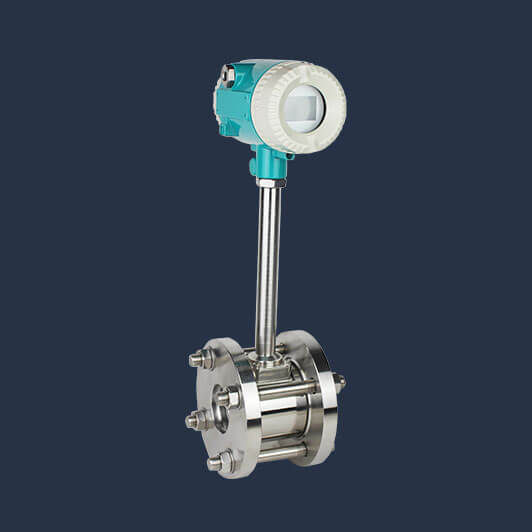

Air Gas Vortex Flow Meter
Application industry:
Vortex flowmeter is widely used in petroleum, chemical, metallurgical, thermal, textile, paper and other industries to measure and control superheated steam, saturated steam, compressed air and general gases (oxygen, nitrogen, argon, hydrogen, natural gas, gas, etc.) water, liquid and other media.
Vortex flowmeter:
-
- 1.LCD display, easy to operate.
- 2.-40 ℃ ~ 350 ℃ for selection.
- 3.Self check function.
- 4.GB / DIN / ANSI / JIS multiple flange standards.
- 5.Separate sensor, more quick response.
- 6.Temperature and pressure could be monitored at the same time.
- 7.Low power consumption, the battery can be used for at least 3 years.
- 8.Pulse / current / RS485 / Hart multiple signal output modes.
- 9.Wide range of medium measurement, can measure steam, liquid, general gas, natural gas, etc.
Measure Range ( working flow rate m3/h)
| DN/mm | Flow Rate Range(m³/h） | ||
| Liquid | Gas | Steam | |
| DN25 | 1-12 | 9-80 | 9-60 |
| DN40 | 3-40 | 18-180 | 20-200 |
| DN50 | 4-50 | 30-300 | 32-320 |
| DN65 | 8-100 | 46-460 | 55-540 |
| DN80 | 13-130 | 70-700 | 81-810 |
| DN100 | 20-200 | 110-1100 | 130-1300 |
| DN125 | 30-300 | 150-1500 | 170-1700 |
| DN150 | 50-500 | 200-2000 | 290-2900 |
| DN200 | 80-800 | 400-4000 | 550-5500 |
| DN250 | 130-1400 | 600-6000 | 800-8000 |
| DN300 | 200-2000 | 1000-10000 | 1150-11500 |
Types
Parameters
| Product Name | Vortex Flowmeter |
| Power supply mode | 24VDC/3.6VDC lithium battery/220VAC |
| Output signal | Pulse/420mA /RS-485/Hart |
| Accuracy | ±0.5%/± 1.0% (liquid);± 1.0% /± 1.5% (gas,) |
| Waterproof grade | IP65/IP68 |
| Measuring medium | Steam, gas, liquid (water, oil, etc.) |
| Pipe material | Stainless steel 304/316L |
