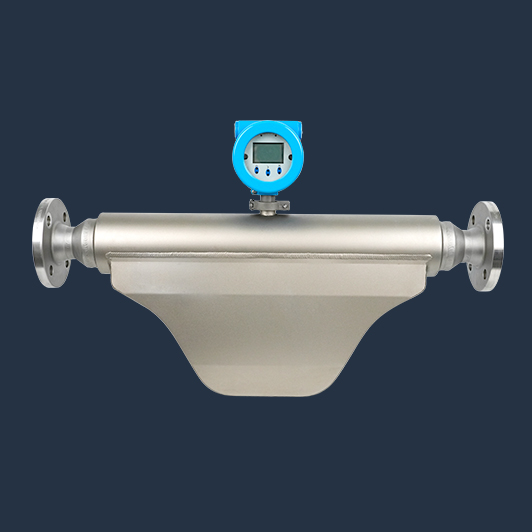

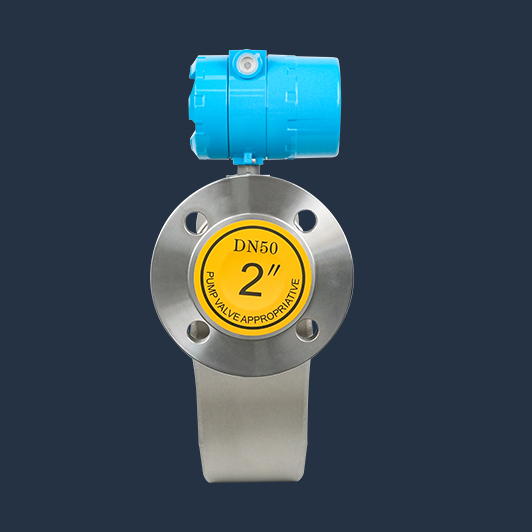

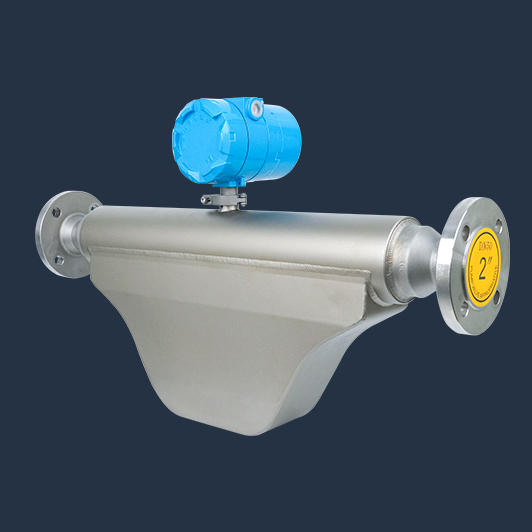

Coriolis Mass Flow Meter
The Coriolis Mass Flow Meter is a high-precision instrument designed to directly measure the mass flow of liquids and gases. Using advanced Coriolis measurement technology, it can simultaneously measure mass flow, density, temperature, and volume flow, providing reliable and stable performance for modern industrial processes.
Product Features
1.High Measurement Accuracy:Accuracy up to ±0.1%,Suitable for custody transfer and critical process control,Stable performance under varying flow conditions
2.Multi-Parameter Measurement:Mass flow,Density,Temperature,Volume flow
3.Wide Application Compatibility:Liquids,Gases,High viscosity fluids,Corrosive media
4.Strong Anti-Interference Capability:Advanced digital signal processing,Excellent vibration resistance,Stable operation in harsh industrial environments
Advantages of Coriolis Mass Flow Meter
Direct mass flow measurement without compensation
High repeatability and long-term reliability
Low maintenance requirements
Compact structure and easy installation
Suitable for complex industrial environments
Parameters
| Item | Specification |
| Measurement Principle | Mass Flow Measurement |
| Accuracy | ±0.1% / ±0.2% |
| Pipe Size | DN3 – DN200 |
| Medium Type | Liquid / Gas |
| Temperature Range | -50°C ~ +200°C |
| Pressure Rating | Up to 40MPa |
| Output Signal | 4-20mA / Pulse / RS485 / HART |
| Power Supply | 24VDC / 220VAC |
| Protection Grade | IP67 / IP68 |
| Communication | Modbus RTU / HART |
